Optima 117 Plus Shoreditch Edition features a slimline aluminium framework. It can achieve up to Rw40dB. This is bonded to the glass, thereby retaining both the structural stability and acoustic performance of the glass partition, whilst at the same time giving the appearance of cutting through the glass with dramatic effect.
The incorporation of extruded aluminium deflection heads makes the system an ideal solution for the modern office building, where high levels of deflection are common. Both inner and outer deflection heads are available, to suit your design intent, and can accommodate up to +/-25mm or +/-40mm deflection. If there is no deflection required, a simple 25mm extruded aluminium head channel is all that is required.
The aluminium base channel can either be 25mm or 50mm deep, depending upon how minimal you want the perimeter framing to be. Where deflection is required, the base channel is 36mm wide to align with the deflection head channel, but if there is no deflection the base channel is just 25mm wide.
Optima 117 Plus Shoreditch Edition can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics. Please contact our Technical Team to discuss the unique requirements of your scheme.
A slimline aluminium framework is bonded to the glass vertically and horizontally, thereby retaining both the structural stability and acoustic performance of the glass partition, whilst at the same time giving the appearance of cutting through the glass. A number of unique finishes are available. Please contact our Technical Team for further information.

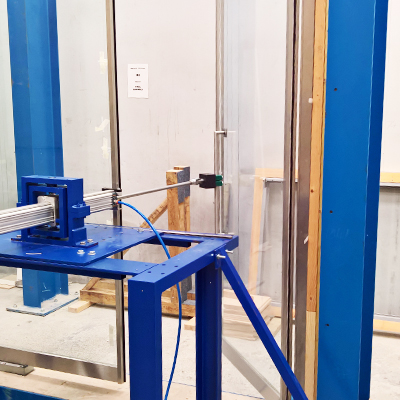

Optima 117 Plus Shoreditch Edition can accommodate a variety of glass thicknesses to suit the acoustic rating that you need to achieve. All of our products are laboratory tested for acoustic performance in a UKAS accredited laboratory and full test reports are available upon request.
Optima 117 Plus Shoreditch Edition can achieve Rw33dB with 12mm toughened glass and Rw40dB with 16.8mm acoustic laminate glass.
Two door types are available for Optima 117 Plus Shoreditch Edition; the ever popular Edge Symmetry door, available in single or double glazed format, and the slim line Kinetic Align sliding glass door. Shoreditch Edition doors come complete with their own unique range of ironmongery. Please contact our Technical Team to find out more.
